ToolCAM
Convert drawings in DXF format into ISO code in a simple and effective way

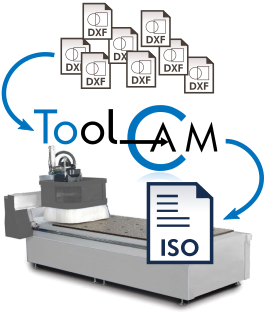

ToolCAM is a powerful program to convert DXF files into ISO language for numerical control machines. With ToolCAM it is possible to obtain directly, or through a dedicated Layer structure, the Part-Program for different types of CNC machines offering a simple and low-cost solution to import DXF files and convert them into machining.
The import is dedicated to machining on a single volume, allowing you to create machinings on all the faces of the panel.
A simplified CAD environment allows you to preview imported profiles, instantly displaying the start point, end point, and direction of the paths obtained. It is thus possible to highlight any points of discontinuity.
It is possible to intervene partially on previously imported paths by changing direction, start point, end point, and make additional minor changes to the drawing.
ToolCAM allows you to generate the machining part-program fully compatible with your CNC machine thanks to its advanced CAM environment and the features of the post-processors.
Integrated CAM Environment
Using the integrated CAM environment of ToolCAM, it is possible to associate tools to the profiles, automatically or by selecting them from the tooling list, specify the machining properties and determine the desired sequence.
In the case of multiple drills, the program will automatically recognize and create MultiDrill machinings.
The Advanced DXF import of ToolCAM also allows, through the use of layers and a dedicated processor, to automatically assign machining properties to imported entities:
Machining tool.
Machining depth.
Diameter of routings and drills.
Machining direction.
Tool correction right, center, left of the drawn path.
In and working feed.
Machining priority in order to set-up desired machining sequence.
Many other parameters are available to get the result desired.
ToolCAM supports a large number of CNC machines with several numerical controls.
Supported Machines
ToolCAM is the ideal tool for CNC machines dedicated to the world of wood, aluminium, plastic, marble, glass and any material processed with a numerical control machining centre.
ToolCAM supports a large number of CNC machines with several numerical controls including CNI-RTCOM, XNC500, XNC1000, CID and CIDx language, TRIA, KVARA, XILOG3, XILOG4, XilogPlus, Osai 8600-8601, Osai Series 10, Osai Open, Siemens, Bosh, ESA and many other numerical controls, giving support to machines of various manufacturers.
ToolCAM is intended for End User, Machine Manufacturers and Resellers
End User
Convert drawings created with generic CAD into programs for a CNC machine is a common need and it is not always possible to do it easily with the tools you have available. ToolCAM is an optimal solution for those who already have a CAD environment.
Machine Manufacturers
With ToolCAM it is possible to provide customers with a low cost and at the same time powerful and functional solution, equipped with a complete CAM environment to optimize the machining. It will also be possible to upgrade ToolCAM at any time to meet the customer's needs, with the possibility to integrate it with the Nesting Module or to upgrade it to PARTNER/ASPAN, thus also making use of a complete CAD environment and further features.
Machine Resellers
Machines can be equipped with obsolete software that strongly limit the user, requiring in some cases the direct writing of the ISO code or antiquated programming procedures. With ToolCAM the customer who buys a used machine, will have a simple and powerful CAM tool, at low cost and will enjoy all the potential of a modern and expandable software.
Want to learn more about ToolCAM
Our live demo offers you a thorough introduction to our software. Discover the numerous benefits and advantages ToolCAM can bring to your business and workflow, whether you're a carpenter, joiner, bathroom designer, or interior designer. We'll guide you through the software, allowing you to ask any questions directly.
